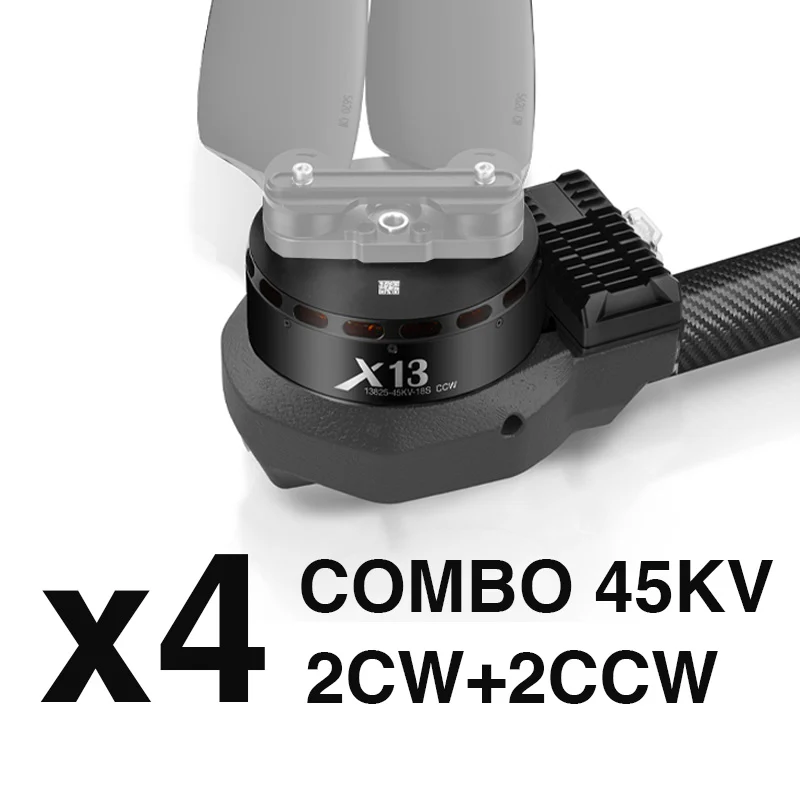

XRotor X13 Integrated Propulsion system

Power Type:  18S |  14S

What's in the box?

• (1) Integrated ESC+Motor
• *Propellers sold separately

Learn more about X13 Power system >

• Overview
• Spec
• Download

• The XRotor X13 brushless power system is a robust plant protection system designed for 25-27kg/rotor single-rotor loads, with more than 53kg of maximum thrust. It is suitable for 50mm carbon fiber tube arms and is IPX6 waterproof, capable of withstanding rain pesticieds, salt spray, high temperatures, sand/dust, impacts, and mud/sand. Featuring FOC vector control and PMSM-based algorithm optimization, the system combines digital and analog throttle for increased flight stability, plus power-on auto-detection and safety functions such as voltage abnormality protection, over-current protection, stall protection, and others; all data is transmitted via CAN, and faults are logged for better analysis.

  2 models available - 45KV |  60KV

  • Recommended Takeoff Weight: 25-27kg/axis

  • Total Weight: 2800g
  • Maximum Thrust: 53kg+(54V, Sea Level)

  • Operating Temperature: -20°C-50°C

  • Powertrain Arm Tube Outer Diameter: 50mm

  • Protection Grade: IPX6

  • Total Weight: 4060g( INC. prop)

  • upport throttle Frequency: 50-500Hz


• UAV Integrated power system
  The whole power system has been assembled before leaves the factory. Unpack and take out the power kit to install on the rack of plant-protection plane as per the rotation direction of motor.


  ESC

  • Continuous Current: 80A (Non-hermetic Ambient Temperature ≤60°C)
  • Maximum Current.: 200A (Non-hermetic Ambient Temperature ≤60°C)

  • Throttle Pulse Width.: 1050-1950μs
  • Recommended LiPo Battery:
  • 45KV - 18S
  • 60KV - 12-14S LiPo (Max 61V)

  Motor (45KV | 60KV)


  • Stator Size: 138*25

  • Motor Size: 148*63.5mm

  • KV: 60kv or 45kv


  Propeller


  • Diameter Pitch: 56*20 inch

  • Single propeller weight: 292g

  • Weight (INC. adapter): 805g

  -- X13 18S 45 KV system

  • R(Stator Resistance)                               21.6mΩ
  • L(Stator Self Inductance)                        29.147
  • M ( Stator Mutual Inductance )              41.839 μH
  • Vpk/Krpm                                             13.7Vpk/Krpm
  • Vrms/Krpm                                            8.92Vrms/Krpm
  • No. of Poles                                           21 pair
  • Moment of Inertia                                 2929249 g㎡
  • Shaft Time Constant                              about 0.096 (for your reference)
  • voltage, power ratings
  •



• User Manual & Installation guide

  • User's manual: XRotor X13-45kv-18S.pdf >
  • User's manual: XRotor X13-60kv-14S.pdf >
